RampVoltage

Ramp voltage source

信息

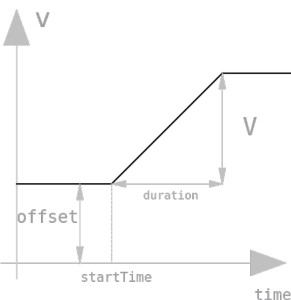

This voltage source uses the corresponding signal source of the Modelica.Blocks.Sources package. Care for the meaning of the parameters in the Blocks package. Furthermore, an offset parameter is introduced, which is added to the value calculated by the blocks source. The startTime parameter allows to shift the blocks source behavior on the time axis.

Revisions

• 1998 by Christoph Clauss
  initially implemented


参数

类型	名称	缺省	单位	描述
Ramp	signalSource	redeclare Modelica.Blocks.Sources.Ramp signalSource(final height = V, final duration = duration)
Voltage	offset	0	V	Voltage offset
Time	startTime	0	s	Time offset
Voltage	V	1	V	Height of ramp
Time	duration	2	s	Duration of ramp

接口

类型	名称	描述
PositivePin	p	Positive electrical pin
NegativePin	n	Negative electrical pin
