代码生成与 FMU 支持

---

支持 Sysplorer 调用 SyslabFunction 组件的模型生成半物理仿真代码，以及导入/导出 FMU 功能。

提示

阅读本章前，请先阅读 Syslab 代码生成、Sysplorer 外部 C 语言集成、Sysplorer 半物理仿真接口工具等帮助文档。

概述

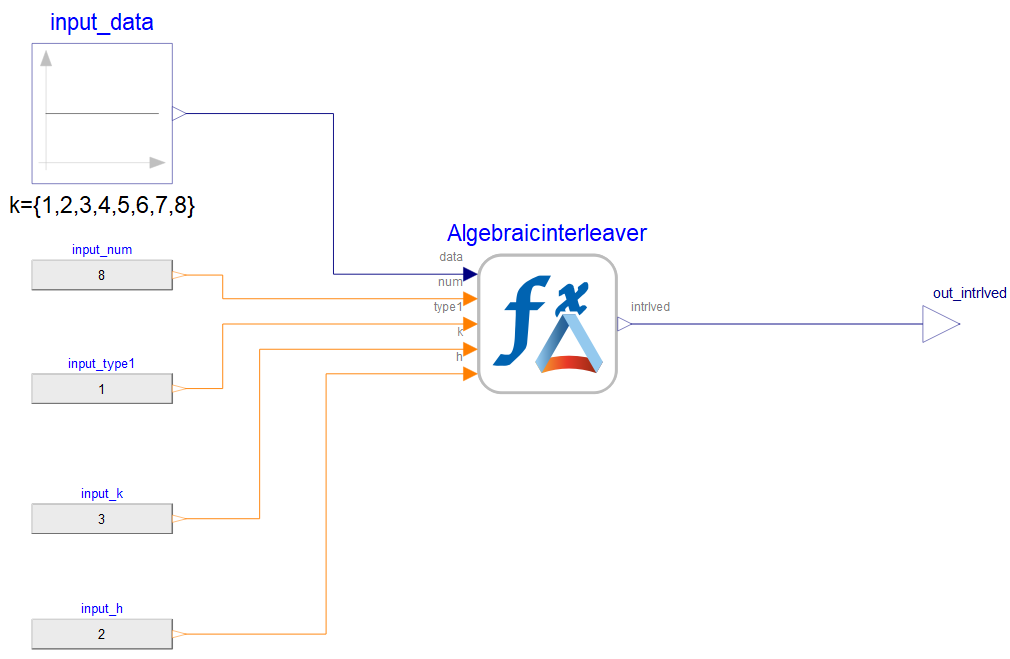

在通信领域，Algebraicinterleaver 函数常用于对输入数据序列重新排列，以增强通信系统对突发错误的抵抗能力，特别是在需要提高抗干扰能力或减小误码率的场景中。例如，在无线通信系统中，通过数据交织可以使数据在信道中更均匀地分布，从而提高抗多径衰落的能力。为了在系统建模中也能使用该算法函数，我们通过 SyslabFunction 将其封装为 Modelica 组件，并搭建了一个简单的示例模型用于验证 Algebraicinterleaver.mo。

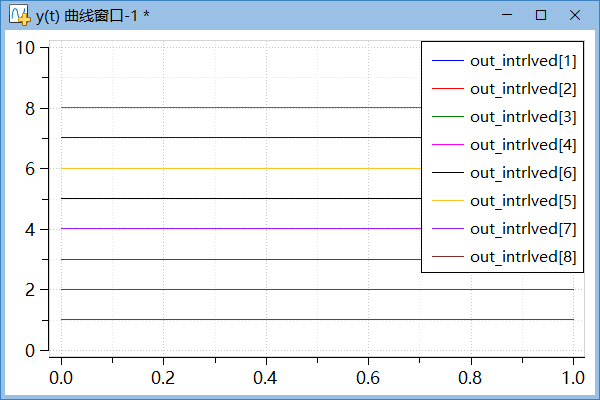

仿真结果：

SyslabFunction 函数脚本：

using TyMathCore
function Algebraicinterleaver(data, num, type1, k, h)
    num = Int64(num)
    k = Int64(k)
    h = Int64(h)
    type1 = Int64(type1)
    data_size = size(data)
    if num != data_size[1]
        error("num must equal the length of the sequence(s) in data")
    end
    int_table = zeros(Int64,num)

    if type1 == 1#"takeshita-costello"
        if !isa(k, Int64) || k >= num || k < 1
            error("k must be positive integer and less then num")
        end
        if !isa(h, Int64) || h >= num || h < 0
            error("h must be nonnegative integer and less then num")
        end
        if num != 2.0^round(log(num) / log(2))
            error("number of elements must be a power of 2")
        end
        m = [0:(num - 1);]
        c = rem.(k .* m .* (m .+ 1) ./ 2, num) .+ 1
        d = [c[2:end]; c[1]]
        v = sortperm(c)
        int_table = Int64.(d[v])
        if h > 0
            # New indices based on Takeshita-Costello method
            int_table = [int_table[(h + 1):end]; int_table[1:h]]
            #int_table = circshift(int_table,-h)
        end
    else # 0"Welch-Costas"
        alpha =k
        if !isa(alpha, Int64) || alpha >= num
            error("alpha must be integer and less then num")
        end
        temp_divisor = num + 1
        # if isprime(temp_divisor)
        #     error("number of elements plus one must be prime")
        # end
        pf = nfactor(num)
        z = alpha * ones(Int64,length(pf))
        n = [2:pf[end];]
        pfLen = length(pf)
        m = [1:(2^pfLen - 2);]
        np_tmp = Int64[]
        #np = zeros(Int64,length(n)*pfLen)
        for i in 1:lastindex(pf)
            np_tmp = [np_tmp; Int64.(n .<= pf[i])]
            #np[(i-1)*length(n)+1:i*length(n)] = Int64.(n .<= pf[i])
        end
        np = collect(reshape(np_tmp,length(n), pfLen)')
        if length(np) == 0
            temp = [0;;]
        else
            temp = np .* [1:pfLen;]
        end
        temp_len = sum(temp .!= 0; dims=1)
        t=filter(!=(0),vec(temp))
        y_ini = 0
        for i in 1:floor(Int64,length(temp) / pfLen)
            y_len = temp_len[i] + y_ini
            t_ind = t[(y_ini + 1):y_len]
            temp2 = z[t_ind] * alpha
            z[t_ind] = temp2 .- (temp_divisor .* floor.(Int64,temp2 ./ temp_divisor))
            y_ini = y_len
        end
        # Checks if the primitive element is valid
        temp_xpf = rem.(floor.(Int64,m .* pow2([0:-1:(1 - pfLen);])'), 2) .* pf'
        replace!(temp_xpf, 0 => 1)
        xpp = prod(temp_xpf; dims=2)
        temp_mx, temp_lx = findmax(temp_xpf; dims=2)
        for i in 1:length(m)
            prd = 1
            lx = temp_lx[i]
            limit = floor(Int64,xpp[i] / temp_mx[i])
            for n in 1:limit
                prd = mod(prd * z[lx[2]], temp_divisor)
            end
            if prd == 1
                error("specified value is not a primitive element.")
            end
        end
        y = ones(Int64,num)
        for i in 2:num
            y[i] = mod(y[i - 1] * alpha, num + 1)
        end
        # New indices based on Welch-Costas method
        int_table = y
    end
    intrlved = intrlv_patch(data, int_table)
    return intrlved
end
function nfactor(n)
    fm = TyMathCore.factor(n)
    nm = length(fm[1])
    nmp = sum(fm[2])
    temp = fm[1][1] * ones(fm[2][1])
    if nm > 1
        for i in 2:nm
            temp = [temp; fm[1][i] * ones(fm[2][i])]
        end
    end
    return Int.(temp)
end
function intrlv_patch(In,PermutationVector)
    out = In[PermutationVector]
    return out
end

Syslab 中测试数据：

data = [1, 2, 3, 4, 5, 6, 7, 8]  # Example data array
num = length(data)  # Length of the sequence(s) in data
type1 = 1  # Using Takeshita-Costello method
k = 3  # Parameter k
h = 2  # Parameter h

# Call the function
result = Algebraicinterleaver(data, num, type1, k, h)

# Print the result
println("Interleaved Result: ", result)

Syslab 中运行结果：

Interleaved Result: [7, 2, 1, 8, 6, 5, 4, 3]
